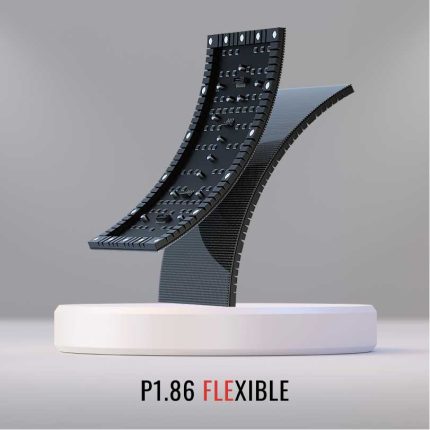

GKGD 1.86 GOB Flexible Module
The P1.86 Indoor GKGD LED module offers ultra-high resolution with a 1.86mm pixel pitch, perfect for close-viewing environments like control rooms, studios, and retail displays. It delivers sharp visuals, stable performance, and easy maintenance for premium indoor applications.
| Pixel Pitch | 1.86mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 172*86mm(w*h) |
| Module Weight | 486g |
| Pixel Density | 288,906dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 25w/piece |
| Avg. Power Consumption | 13w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥1.86 meters |
GKGD P2.5 GOB Flexible Module
A P2.5 indoor flexible LED module is a high-resolution display solution designed for creative and curved installations in indoor environments. These modules offer sharp image quality suitable for close-viewing applications such as retail displays, exhibitions, and stage backdrops.
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020/SMD1515 |
| Module Size | 320*160mm(w*h) |
| Module Resolution | 128*64mm(w*h) |
| Module Weight | 431g |
| Pixel Density | 160,000dots/m² |
| Brightness | ≥600cd/m² |
| Max. Power Consumption | 22w/piece |
| Avg. Power Consumption | 11w/piece |
| Refresh Rate | ≥3840Hz |
| Min. Viewing Distance | ≥2.5 meters |
